FilmStar/Scantraq and Excel

Don't miss Excel extends optical coating software capabilities
in Laser Focus World April 2014. Click here to read the article;
click here to download examples (Reference 1 in the article).

Excel is the world's most widely utilized calculation/data analysis software. Optical coating engineers all rely on Excel, but only FilmStar users get its maximum benefit!

In this page we present ways in which Excel interfaces with FilmStar (Scantraq). Examples 3-9 utilize Excel VBA. Never heard of VBA? Start Excel and click Alt+F11. Surprised to see Microsoft Visual Basic (VBA) in the title bar? Once you discover the power of Excel VBA, you'll better appreciate how FilmStar's  support far exceeds that of other coating and spectrometer software. Compare an site search for 'Excel' with the same search on other coating software sites.

Do you really want 25 separate spectral files to characterize uniformity
on a large optic? A single file with 25 %T columns is clearly much better!
Click here to learn more about dealing with multiple spectra.

1. Data Exchange

FilmStar spectral formats include .csv, .dx (JCAMP) and .spc (Galactic GRAMS) and .xls/.xlsx (Excel). While .dx and .spc are somewhat standard in spectroscopy, these formats are unfamiliar to optical engineers and less than useful for data exchange.

FilmStar DESIGN/MEASURE (Scantraq) save directly in .xls and .xlsx format (Excel not required). Applications include custom spectra files, n&k import/export, etc. The Collector simplifies dealing with multiple spectra. Integration with the Microsoft Excel Viewer allows technicians to view and verify results without being able to modify them.

2. Copy/Paste Data

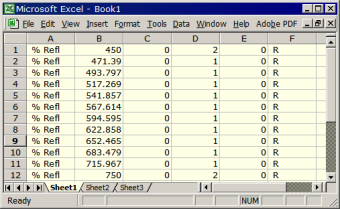

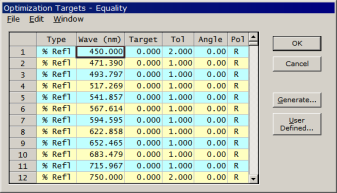

As illustrated by the DESIGN Optimization Targets dialog, most FilmStar spreadsheet objects are Excel copy-and-paste-compatible. Data can also be pasted or copied from the FilmStar Workbook.

Applications include

  • DESIGN..Import theoretical optimization targets
  • DESIGN.. Import/export calculated spectra
  • DESIGN..Rugated index profiles and thin film designs
  • INDEX..Import/export n,k tables, import measured spectra for n,k calculations
  • MONITOR..Import/export the monitor Worksheet
  • MEASURE/Scantraq..Export measured spectra, useful for combining multiple measurements

Applications like Mathcad, Origin and SigmaPlot are also Excel-compatible. This greatly extends the usefulness of FilmStar's compatibility.

User-friendly glass selector

3. Import Manufacturer's Data

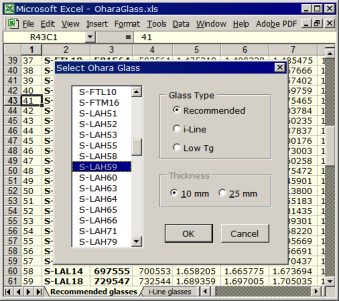

Since Excel is so universal, manufacturers typically supply data in Excel format (*.xls). Examples include Schott and Ohara glass data. To make these workbooks easier to use we added an Export worksheet, a Select Glass dialog and supporting VBA macros.

n values are computed with a Sellmeier equation, while k values are derived from internal transmittance. W,n,k tables are automatically imported into FilmStar:

360 1.94204 6.8983E-06
370 1.93647 2.2231E-06
380 1.93144 8.2988E-07
390 1.92688 3.6167E-07
400 1.92273 1.8007E-07
420 1.91545 7.7770E-08

The end result is that Schott and Ohara glasses appear to be built into FilmStar. Contact us for an online demo!

4. Translate Designs

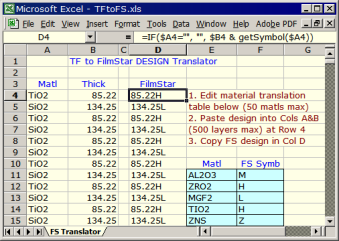

Designs from another program are pasted into Matl and Thick columns. VBA function getSymbol helps convert to FilmStar DESIGN format. Export from FilmStar would be very similar.

  Function getSymbol$(ByVal Matl$)
      Dim i%, t$
      For i = 1 To 50
          t$ = Ucase(Sh1.Cells(i + 10, 5))
          If t$ = "" Then
              getSymbol = "": Exit Function
          ElseIf UCase(Matl$)=t$ Then
              getSymbol = Sh1.Cells(i+10, 6)
              Exit Function
          End If
      Next i
  End Function

5. Calculate in Excel

There is often need to compute specialized and possibly proprietary values from theoretical or measured spectra. While this might be accomplished in FilmStar BASIC and/or the FilmStar Workbook, Excel offers further possibilities.

One can always utilize Excel by manually pasting spectra, but this approach may not be suitable in production. It's too easy to paste data into the wrong columns and there are possible security issues.

Fortunately Excel is COM (component object model) compatible and can be utilized in the background. Since FilmStar (Scantraq) is also COM compatible, it can send and receive Excel commands and data.

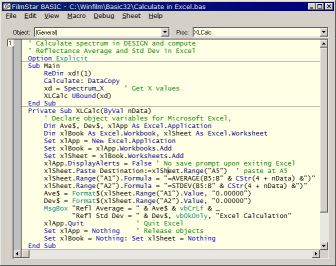

This is illustrated with the instructive 'Calculate in Excel.bas' BASIC macro included with the FilmStar Free Version. A user need only click a button to run a hidden copy of Excel which computes requested quantities.

This will not work with the pre-installed
'Click-to-Run' version of Office 2010.
Click here for further information.

More typically previously created Excel workbooks are utilized. In DESIGN macro 'SpecCalc5nm.bas' Bruce Lindbloom's freely available Spectral Calculator (zipped) (unzipped) computes LCH values. DDE can also be used.

6. Run FilmStar from Excel

In the above example, FilmStar BASIC issues Excel VBA commands. In the client-server model, FilmStar is the client and Excel the server.

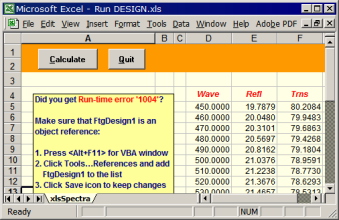

The opposite arrangement (Excel as client) is illustrated by an Excel workbook 'Run DESIGN.xls' also in the FilmStar Free Version. Here Excel runs DESIGN in the background. Since DESIGN is invisible, it might appear that Excel has 'magically' gained the ability to perform thin film calculations.

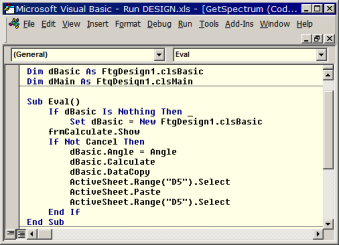

DESIGN BASIC subroutines (like .Calculate) and functions (like .Angle) act as if built into Excel VBA. Skills learned with DESIGN are applicable to MEASURE. Often the only difference in MEASURE or Scantraq is replacing Calculate with Scan.

Optical engineers and spectroscopists who have so far managed without Excel VBA take the risk of putting their companies and their careers in jeopardy. The effort involved in understanding and implementing VBA automation is more than compensated by the advantages.

A very prominent manufacturer utilizes Excel Workbooks as process databases. Stack Mode lets them optimize optical characteristics and instantly modify Workbooks accordingly. Their Excel-FilmStar solution is called ExcelStar.

1. Sorting filters

2. R/T vs temperature

3. Absolute R/T Analyzer

7. Excel as Results Database

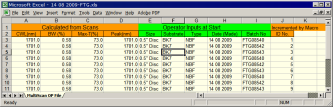

1. A UK coating company needed to sort filters by center wavelength. Here FilmStar MEASURE BASIC communicates with a PLC to move parts into the sample chamber. Filters are scanned, center wavelengths computed, and results automatically inserted into Excel.

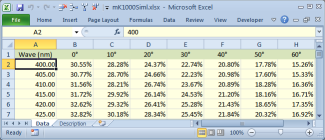

2. A Korean research facility needed to measure %R/%T over wide temperature ranges. Excel was the obvious choice for saving multiple spectra; click here to learn more.

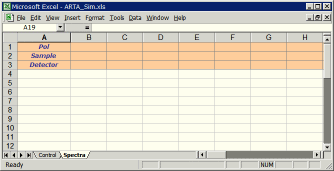

3. A Dutch manufacturer of spectrophotometer accessories needed to measure %R/%T over a wide range of incident and detector angles. Excel was once again the obvious choice for saving the great number of spectra. Click here to learn more.

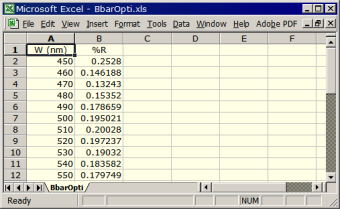

4. A coating engineer required reflectance vs. wavelength and layer thickness lookup tables with ~6000 columns and ~1000 rows. Fortunately Excel 2007 increased the maximum number of columns from 256 to 16,384. Click here to learn more and download relevant DESIGN BASIC code.

8. Excel as Procedure Database

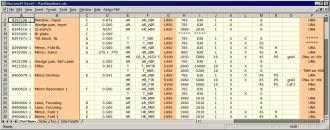

A NH manufacturer required a MEASURE BASIC program to help technicians scan numerous optical parts. Our solution uses Excel as a database. Each row defines a procedure; photos and screen images are included in gMsgBox prompts. Example: 'Does the scan resemble the one shown here?'


9. Excel Color Grid

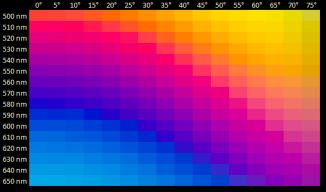

Since Excel 2007, cells are no longer limited to 256 colors. This improvement allows us to automatically generate RGB color grids illustrating angle dependence, tooling changes, layer variations, etc. Click here to download the Excel workbook shown at the left.

The diagram indicates how a graded thickness deep dish reflector can minimize color shift as a function of angle.

Inspired by these examples? Think your organization would benefit from more efficient use of Excel? Contact us for a free consultation and an online demonstration. If your company lacks in-house Excel development resources, we'll be pleased to discuss your requirements and provide a proposal. But really, it's all much easier than you might think as shown in Dave Taddeo's YouTube video. In addition there are numerous Excel VBA tutorials on the Internet.
